- Marche
- SUPER SUJIGANE KUN
- (Japanparts No :
308-006-001
)
Click on the image above to enlarge
item is added to Wish List
Member page Login
Please input your Email address and password.
- Email address
- Password
- Estimated delivery time by EMS/Courier
- 10-15 days
- Car category
Subaru
-
Legacy 2006-08 BL/BP D-F Liberty
Legacy 2003-05 BL/BP A-C Liberty
-
Legacy 2006-08 BL/BP D-F Liberty
- Compatible with:
- BP/BL
- Product
Details - Ask about
Product - Ratings and
Review (1)
Suspension & Steering
>Chassis braces
- Product Information
-

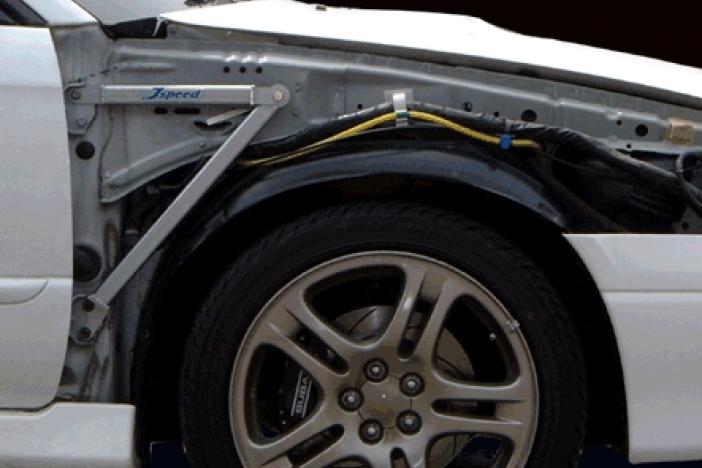

Please check the second photo see the body style.
- Ask about Product
- Inquiry for 308-006-001
-
Options :
-
Email Address:
-
Email Confirmation:
-
Chassis number/ Model code:
-
body:
Thank you very much for your inquiry.
We will contact you within 3 business days.
If you don't receive any reply from us,
send an inquiry form again
-
-
- Product review
The item was installed but pending testing. Others in Subaru forums have reported a significant difference in feel of vehicle driving afte installing this item.
-
- Photo
-
- Installation tips
(For Type 1 Install)

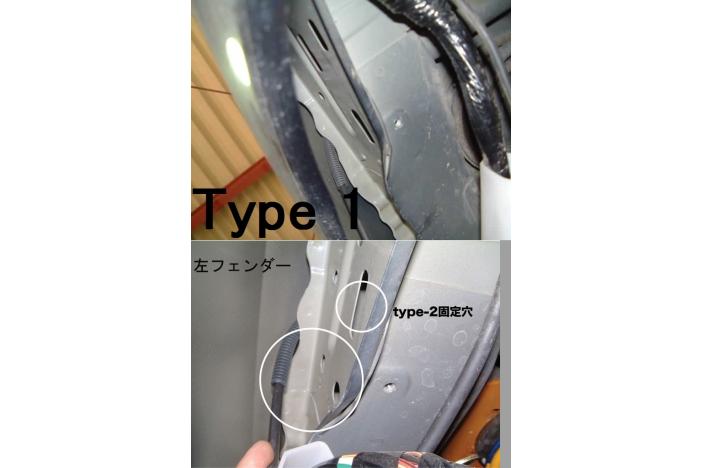

- Use third picture in review for reference points.
- Remove front bumper and loosen headlights.
- Remove front fenders
- Remove lower door hinge bolts
- Remove top bolt only of upper door hinge
- Install lower bar loosely to bottom door hinge marked yellow with provided bolts and cut fender foam insulation marked in green to clear bar then tape it around the bar.
- Install front anchor using attached steel wire and feed through red circled long hole and loosely secure with stud at yellow circled long hole
- attach front of lower bar to front anchor stud.
- Install upper bar to top hole of upper door hinge and loosely secure with provided bolt then loosely secure bar to front anchor point with provided nut.
- Tighten front anchor mount then top door bolt in that order. Front anchor tightening will press and shape chassis steel to fit. Tighten to 5kgf/m.
- Tighten lower door hinge bolts with bar installed
- install and secure fender(s), headlights, then front bumper cover. -
Written by Edward (UNITED STATES) | 2026-02-06
