Home > result > 135-058-002

  • BLITZ
  • TURBO SYSTEM 86/BRZ TUNERS KIT (10202)
  • (Japanparts No :

    135-058-002

    )

 Click on the image above to enlarge

  • 572,000 JPY  (
    Convert

    Home Currency Selection

    Select your home currency from the list below.
    Then click on "Set Home Currency" button to set your home currency.

    )
  • You save 74,360JPY
  • 497,640 JPY  (
    Convert

    Home Currency Selection

    Select your home currency from the list below.
    Then click on "Set Home Currency" button to set your home currency.

    )
  • Quantity :

add to Wish List

item is added to Wish List

already added to Wish List

Member page Login

Please input your Email address and password.

Email address
Password
Estimated delivery time by EMS/Courier
28-35 days
  • Car category
  • Toyota

    • TOYOTA86/ FR-S 2016-
      TOYOTA86/ FR-S -2016

  • Compatible with:
  • ZN6, 6MT ealier and later model and 6AT ealier model
  • Product
    Details
  • Ask about
    Product
  • Ratings and
    Review

Engine

 >

Turbo kit & Supercharger

Product Information

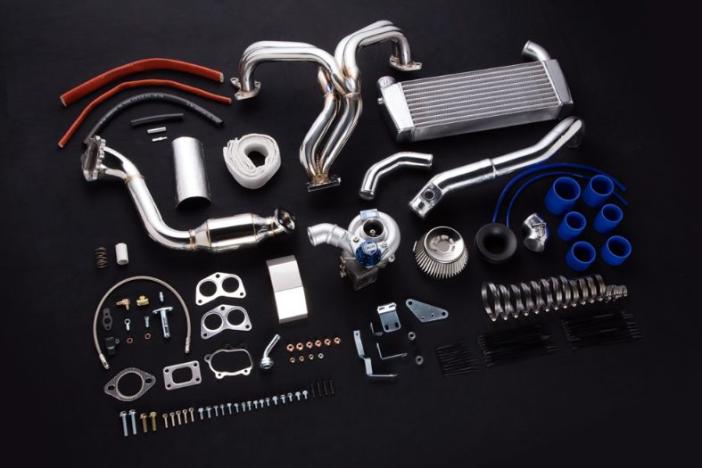

TUNERS KIT
B06-380R turbine: ○
SUS POWER AIR CLEANER: ○
Exclusive intercooler kit: ○
Exclusive exhaust manihold: ○
Exclusive down pipe: ○
Catalyzer: ○ with down pipe
ECU: X
Boost Controller: X

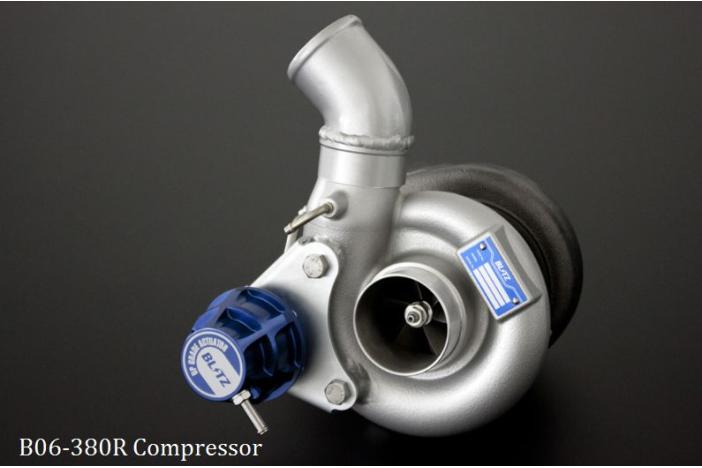

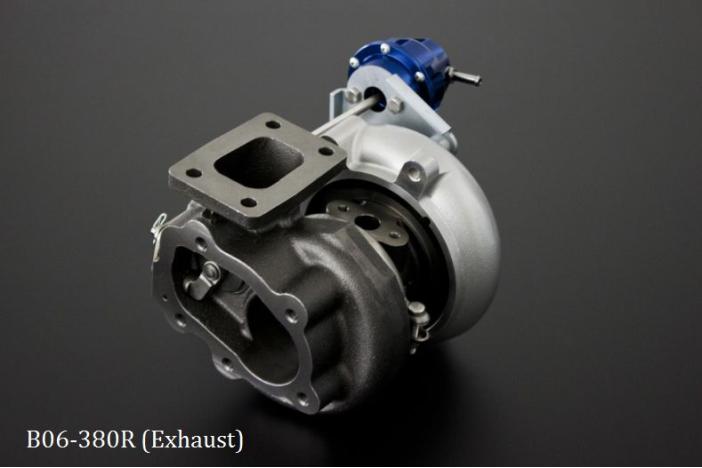

B06-380R turbine spec:
Max.hp: 380PS
Compressor Wheel: trim- 60.7, In Dia(mm)- 53, Ex. Dia(mm)- 68
Turbine Wheel: trim- 76.6, In Dia(mm)- 56, Ex. Dia(mm)- 49

For Toyota 86, ZN6, FA20 engine, 6MT Zenki(ealier model) and Koki(later model), Toyota 86 ZN6 6AT Zenki(ealier model). Not for 6AT Koki(later model).

BLITZ TURBO SYSTEM Features:
- Bolt-on turbo system that uses an actuator type metal flow turbine for 86 / BRZ.

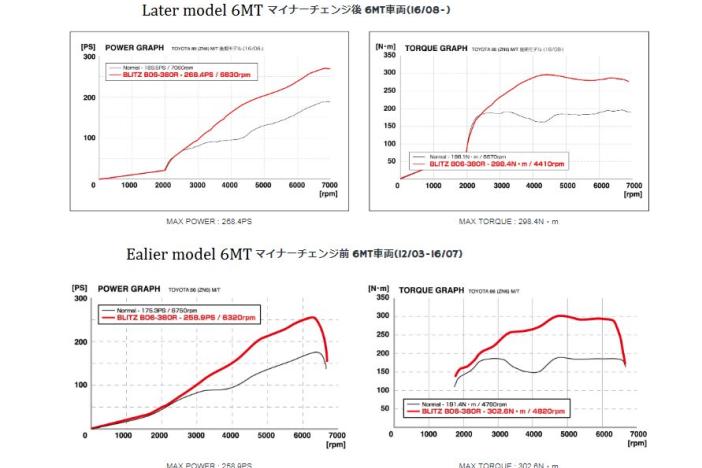

- It generates a maximum output of approximately 260 PS and a maximum torque of approximately 300 N/m, and powerful feeling at the range between low-medium speed to high rev. (* In the case of normal engine and setting by Blitz).
- For a wide use from street to circuit by increasing power and torque by turbo.
- BLITZ original B06-380R turbine use. The compressor housing is specially painted to reduce rust and dirt.- Equipped with turnbuckle original actuator as standard.

Note:
Please install the RACING OIL COOLER KIT RD at the same time provide sufficient cooling to prevent the turbine damage.
