Remarks:2 of OEM mounting rubber (TK48-28-380B) is required to install MKF7700 to chassis number after KF300001.

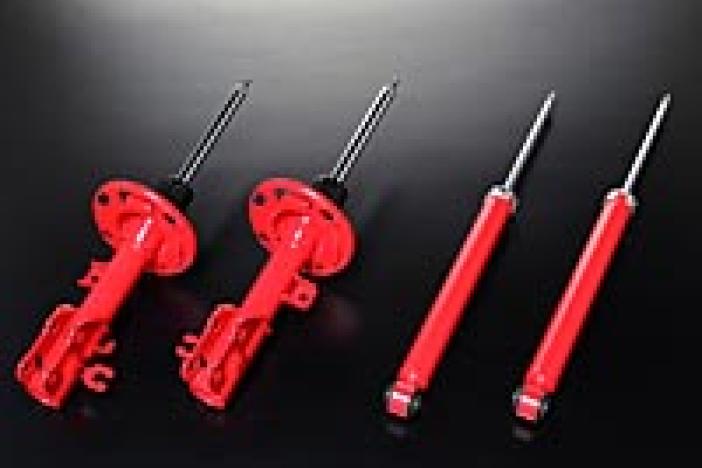

Auto Exe Sports damper Spec CX-5 KF vs (standard):
Case spec (mm):
Lmax Fr 591(602) / Rr 669(671)
Lmin Fr 387(423) / Rr 434(453)
Extension side damping force(N), Piston speed at
0.05m/s : Fr 690(242) / Rr 220(113)
0.1m/s : Fr 940(655) / Rr 310(270)
0.3m/s : Fr 1410(1155) / Rr 620(502)
Pressure side damping force(N), Piston speed at
0.05m/s : Fr 310(122) / Rr 210(133)
0.1m/s : Fr 390(234) / Rr 340(263)
0.3m/s : Fr 640(742) / Rr 610(521)
Auto Exe Sports damper Spec CX-5 KE vs (standard):
Case spec (mm):
Lmax Fr 601(601) / Rr 669(669)
Lmin Fr 393(389) / Rr 434(456)
Extension side damping force(N), Piston speed at
0.05m/s : Fr 290(549) / Rr 230(181)
0.1m/s : Fr 540(751) / Rr 350(347)
0.3m/s : Fr 1060(1164) / Rr 730(726)
Pressure side damping force(N), Piston speed at
0.05m/s : Fr 500(403) / Rr 150(156)
0.1m/s : Fr 600(589) / Rr 260(277)
0.3m/s : Fr 910(836) / Rr 570(529)
Part number: MKF7700 for KF / MKE7700 for KE
Note:
This item may require an extra shipping charge depending on the destination country. If it does, we will contact you by email within 3 business days after the order is placed and tell you how much extra it costs for shipping. You can ask us to cancel the order if you would not like to pay the difference. We will proceed with the order once we receive the extra payment from you.
