- Subaru
- 20510C STI FLEXIBLE LOWER ARM BAR
- (Japanparts No :
107-319-002
)

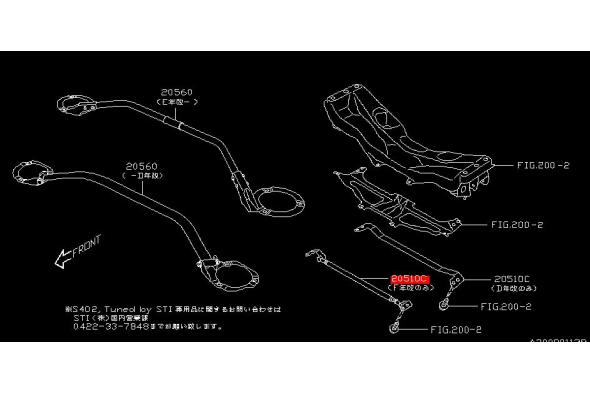

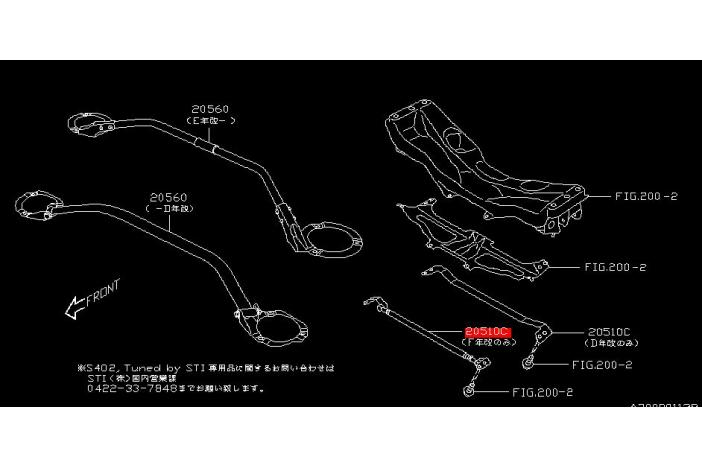

Click on the image above to enlarge
- 36,440 JPY ()
item is added to Wish List
Member page Login
Please input your Email address and password.
- Email address
- Password
- Estimated delivery time by EMS/Courier
- 10-15 days
- Car category
Subaru
-
Legacy 2006-08 BL/BP D-F Liberty
EXIGA
-
Legacy 2006-08 BL/BP D-F Liberty
- Compatible with:
- BL9/ YA (Turbo)
- Product
Details - Ask about
Product - Ratings and
Review (1)
Suspension & Steering
>Strut bars
- Product Information
-
S402/ uses.
- Ask about Product
- Inquiry for 107-319-002
-
Options :
-
Email Address:
-
Email Confirmation:
-
Chassis number/ Model code:
-
body:
Thank you very much for your inquiry.
We will contact you within 3 business days.
If you don't receive any reply from us,
send an inquiry form again
-
-
- Product review
Parts arrived safely and well packaged, Pending installation until all suspension parts are ready.
-
- Photo
-
- Installation tips
Installation seems straightforward just requires time and work:
- remove bolts and clips from under cover w/ 12mm socket wrench.
- Remove Cross member support plate flange bolts (2 bolts)
- If equipped with support arm front, remove (4 flange bolts).
- If no front support arms, remove 4 flange bolts on cross member support plate.
- w/ front support arm: use new long flange bolts to loosely secure the front support arms and flexible lower arm bar with pillow ball bolt facing outwards and cross member support plate.
- Tighten center bolt that secures the front support arm.
- Without front support arms; use flange bolts short to secure flexible lower arm bar with cross member support plate (tighten to 60Nm (6.0Kg f-m) using 14mm socket wrench and torque wrench)
- Tighten the self-locking nut that temporarily fastens the pillow ball bolt and bracket on the left side of the bar. (Tightening torque: 35N m (35Kg f+m)
- The bar should rotate smoothly. -
Written by Edward (UNITED STATES) | 2025-09-11
