- Subaru

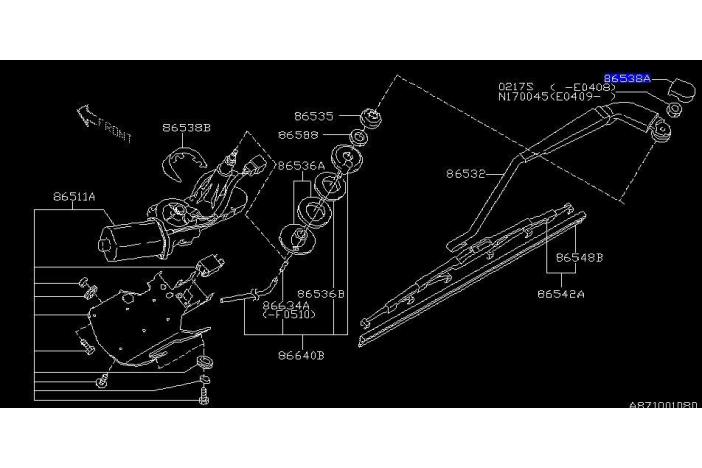

- 86536A CUSHION A, REAR WIPER
- (Japanparts No :
153-036-010
)
Click on the image above to enlarge
- 677 JPY ()
item is added to Wish List
Member page Login
Please input your Email address and password.
- Email address
- Password
- Estimated delivery time by EMS/Courier
- 10-15 days
- Car category
Subaru
-
Impreza WRX/STi 2001-02 GD/GG A-B Bug Eye
Impreza WRX/STi 2006-07 GD/GG F-G Hawk Eye
Impreza WRX/STi 2003-04 GD/GG C-D Blob Eye
Impreza WRX/STi 2005 GD/GG E Blob Eye
-
Impreza WRX/STi 2001-02 GD/GG A-B Bug Eye
- Compatible with:
- GDB
- Product
Details - Ask about
Product - Ratings and
Review (1)
Aero & Exterior
>Exterior accessories & Garnishes
- Product Information
- Ask about Product
- Inquiry for 153-036-010
-
Options :
-
Email Address:
-
Email Confirmation:
-
Chassis number/ Model code:
-
body:
Thank you very much for your inquiry.
We will contact you within 3 business days.
If you don't receive any reply from us,
send an inquiry form again
-
-
- Product review

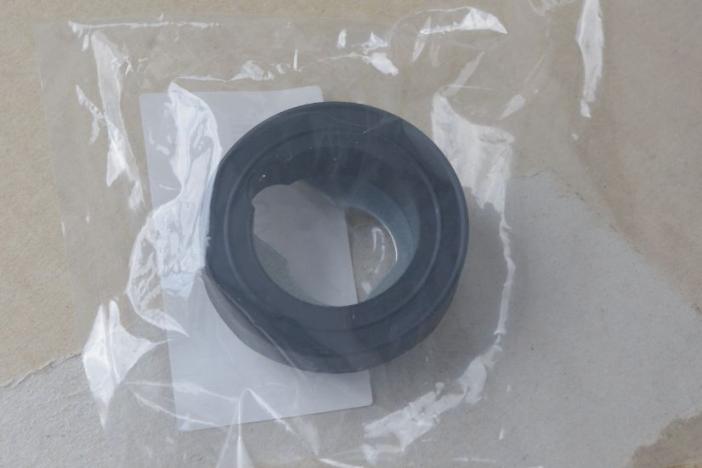

Part of the rear wiper assembly being used on a B4 BL Legacy S402 conversion project. This part serves as a weather barrier on the interior part of the glass.
-
- Photo
-
- Installation tips
Installation, replacement takes some effort but is straightforward.
- Remove Rear wiper arm by taking off hinge cover then remove nut that secures wiper arm to shaft axle and lift arm off.
-
- Access rear wiper motor from rear trunk, unplug electrical wire from wiper arm motor
- Locate washer fluid hose and detach from inlet of wiper motor then temporarily crimp hose.
- Remove plastic outer cap to reveal second nut and remove nut then remove washer fluid nozzle.
- Remove bolts that secures the wiper motor assembly with bracket from rear trunk.
- You now have access to install or replace the internal rear wiper cushion then re-install following steps above but in reverse. -
Written by Edward (UNITED STATES) | 2025-12-26
